Municipal Assistant

GRAP asset register and water treatment

A GRAP-compliant asset register and the daily logbook at a water treatment works, in one system built for South African municipal legislation.

  • Municipal operations overview showing SANS 241 compliance, registered assets, gross replacement and book value, overdue maintenance, open incidents, the portfolio condition distribution and a facility health row

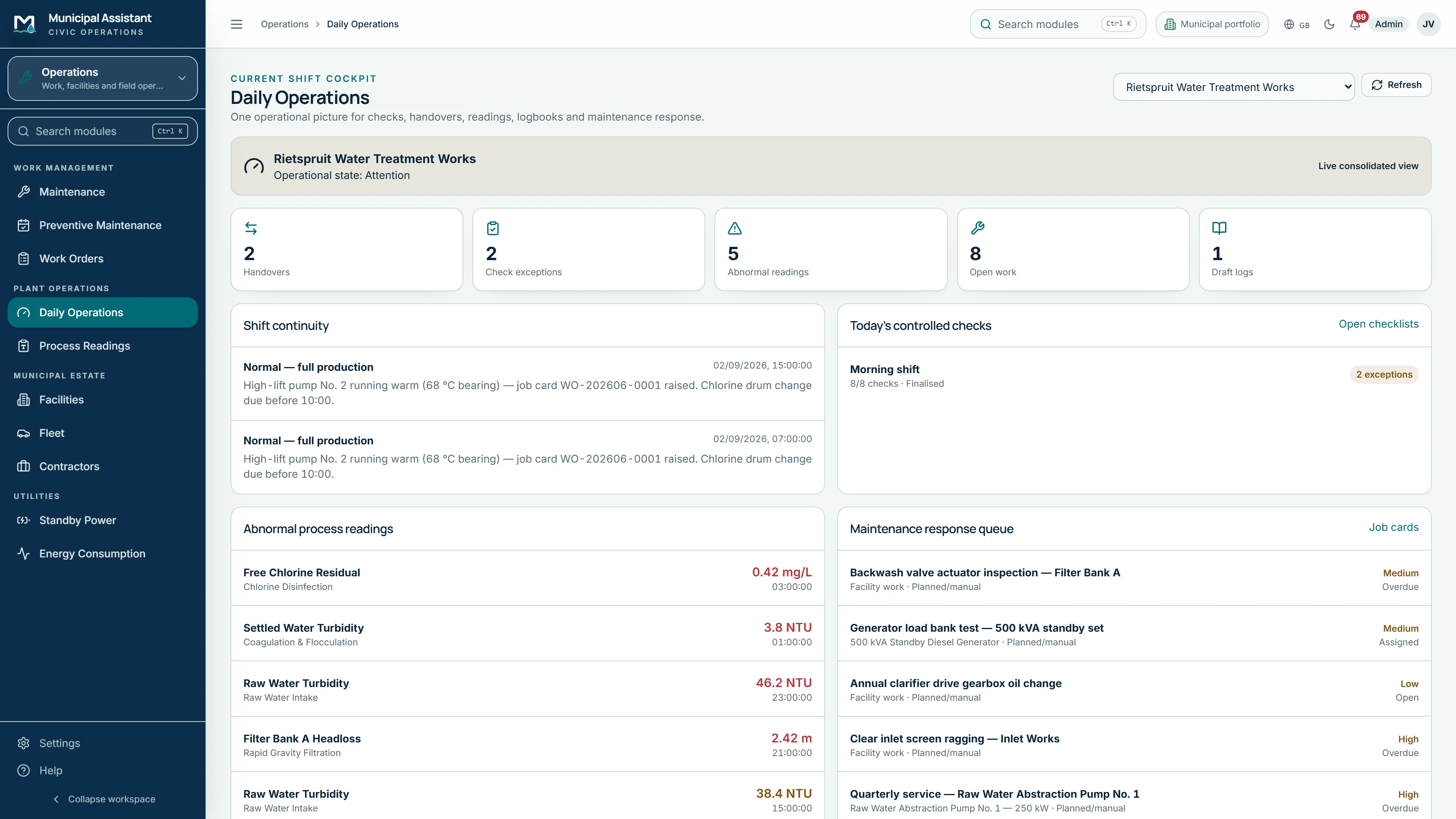

  • The daily operations screen for a water treatment works, showing handovers, check exceptions, abnormal readings and open work, with shift continuity notes, the day's controlled checks, out-of-range process readings and the maintenance response queue

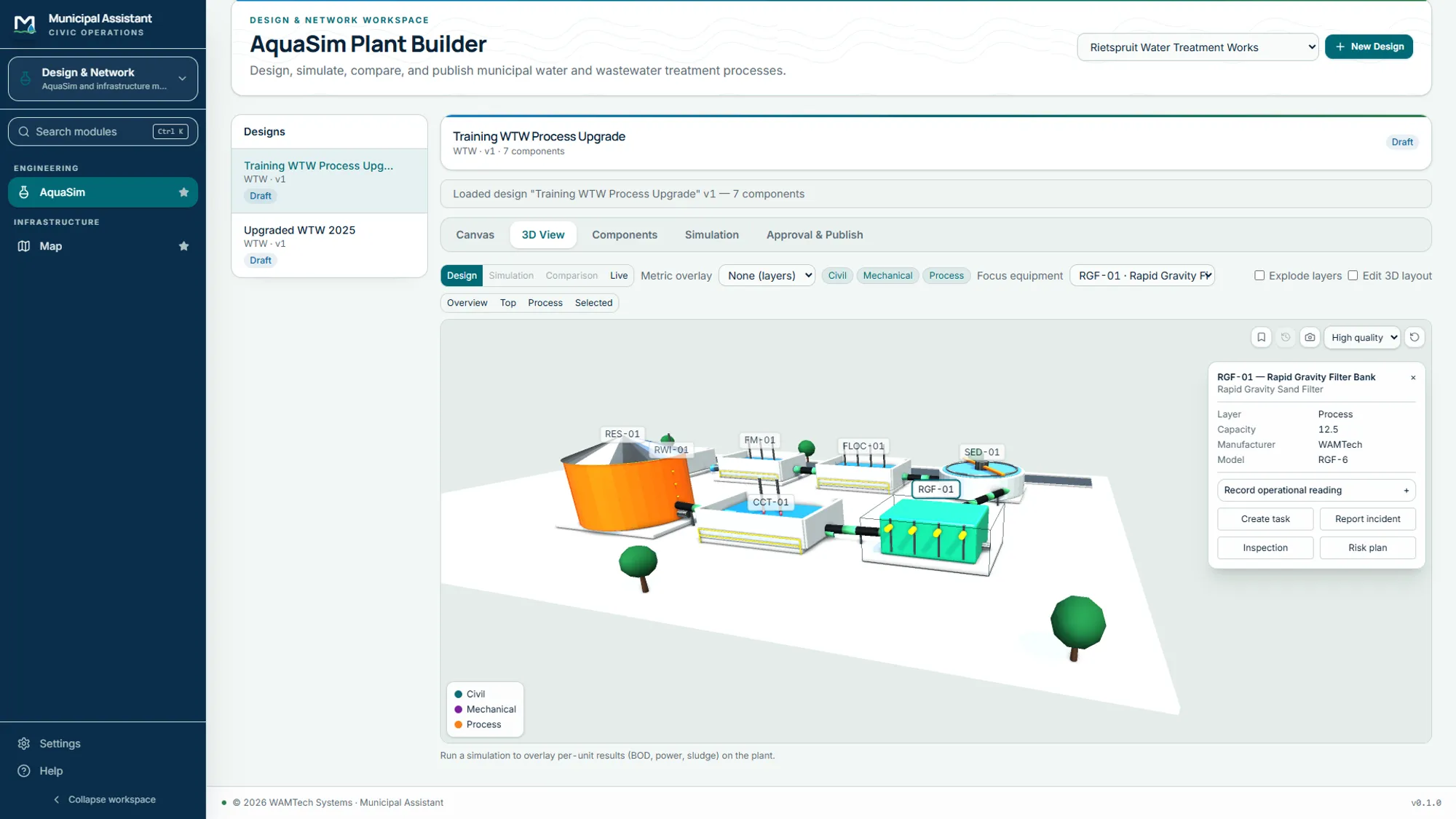

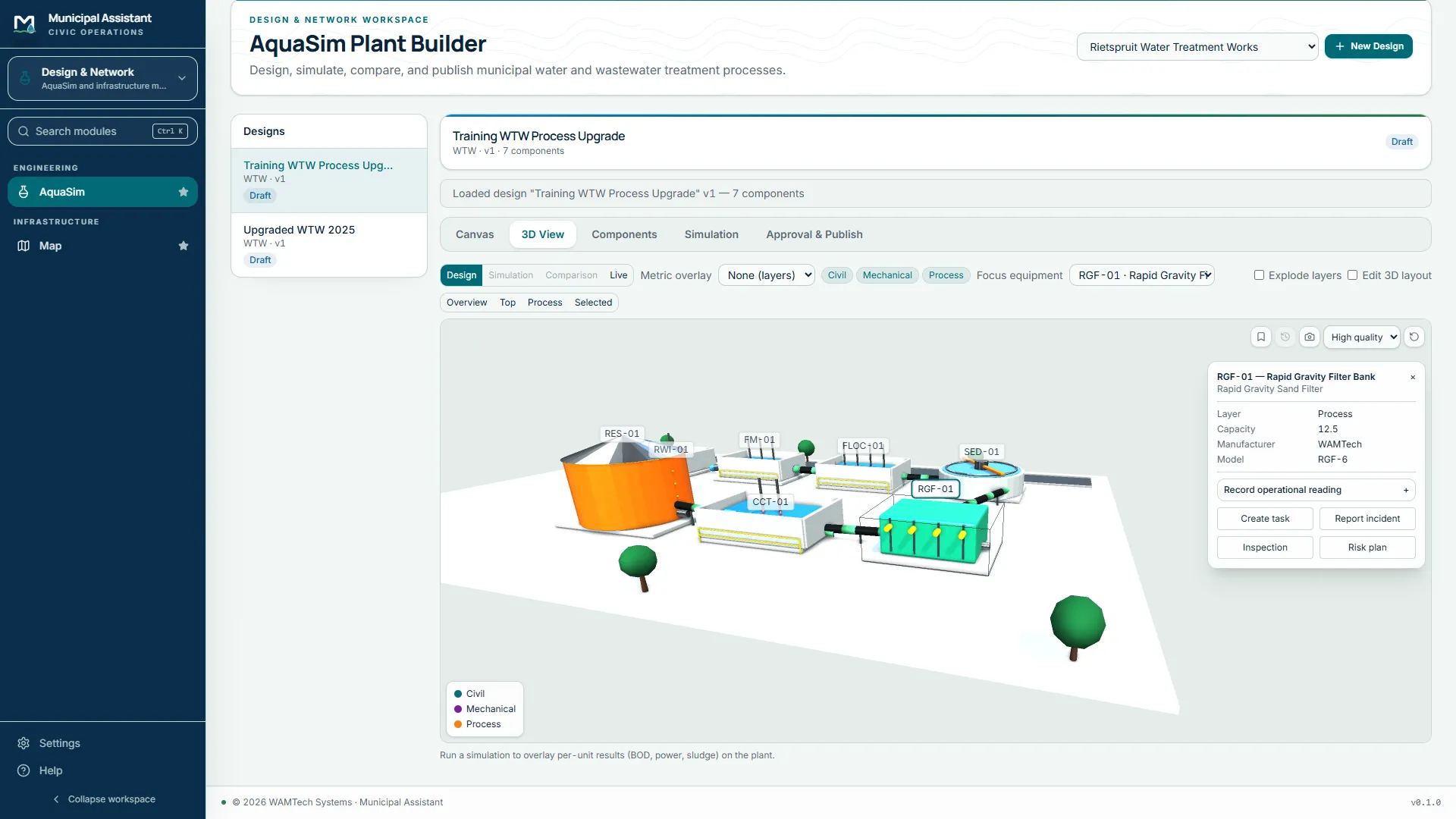

  • The AquaSim plant builder showing a water treatment works in three dimensions with its civil, mechanical and process layers, and an inspector panel for a rapid gravity filter bank carrying its capacity, manufacturer and model

Registration, classification, depreciation under GRAP 17 component accounting, condition assessment, impairment and disposal on one side. Water quality readings checked against SANS 241 limits, chemical dosing, sampling schedules and shift handover on the other.

Field capture works without a connection, because pump stations and treatment works rarely have one. When SANS 241 is revised, the update reaches every municipality running it.

What else it carries

Wastewater and effluent

Influent and effluent are measured against the GN 665 limits set for that works. Bypass and overflow events are logged with a start and an end time, and a reading outside its limit opens an incident without an operator having to raise one.

Work orders

A work order belongs to the asset it was raised on, whether it came off a preventive schedule or a breakdown call. Cost of ownership accumulates on the asset record, which is where an auditor goes looking for it.

Fleet

A vehicle register with odometer readings, fuel logs, service intervals and licence expiry dates.

Alerts

Non-compliant readings, overdue maintenance, chemical stock running low and expiring licences all raise an alert. The thresholds sit per facility, because a works dosing chlorine gas does not hold the same stock as one dosing hypochlorite.

Reporting

SANS 241 compliance reports, GN 665 effluent returns, depreciation schedules, asset registers and capital renewal forecasts, in Excel and PDF.

Several works, one municipality

Dashboards drill from the municipality down to a single pump station. Data stays isolated per municipality, which matters where one contractor operates the works for several of them.

On a phone

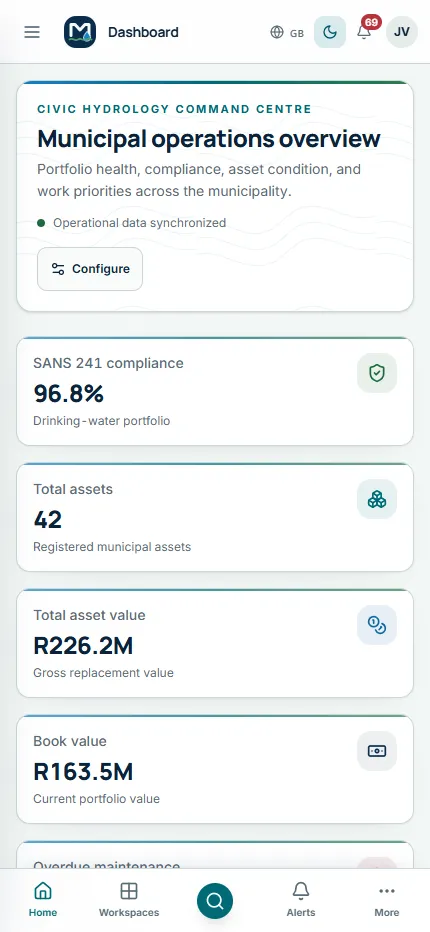

  • The Municipal Assistant dashboard on a phone, with SANS 241 compliance, registered assets, total asset value and book value stacked in one column above a bottom navigation bar

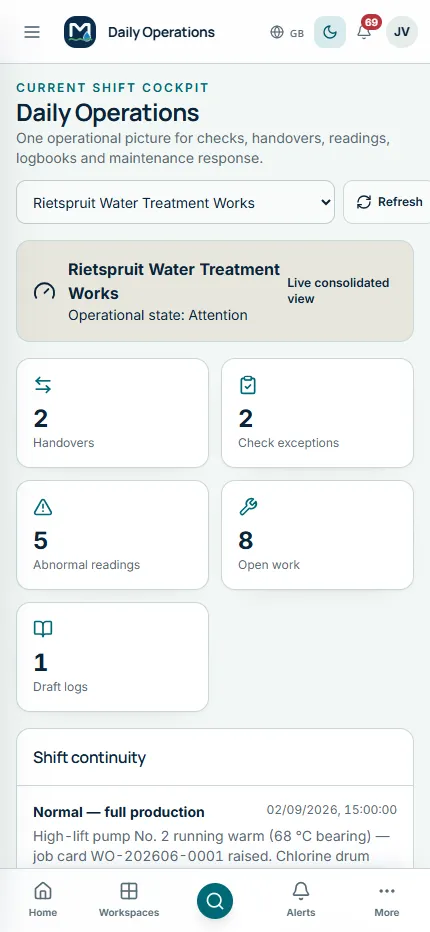

  • Daily operations on a phone, showing the works selector, its operational state, and counts for handovers, check exceptions, abnormal readings, open work and draft logs above the shift continuity log

Water quality

Every reading checked against SANS 241 as it is entered.

One shift at a treatment works. Each determinand carries its own limit and its risk class, and the class decides where a failure goes: the works summary, the monthly return, or a phone call before the shift closes.

Shift 2 · 14:00 reading

Drag a reading past its limit

  • E. coli Acute health Not detected
    0 per 100 mL Within limit
  • Turbidity Operational 1 NTU or less
    0.42 NTU Within limit
  • Free chlorine Operational 5 mg/L or less
    1.1 mg/L Within limit
  • pH Operational 5.0 to 9.7
    7.4 Within limit
  • Nitrate as N Chronic health 11 mg/L or less
    3.8 mg/L Within limit
  • Electrical conductivity Aesthetic 170 mS/m or less
    62 mS/m Within limit

Shift status

Within limits

Every determinand logged against its SANS 241 limit. The shift closes on the operator's sign-off.

Illustrative. Limits are SANS 241-1:2015 figures; the routing shown is how Municipal Assistant is configured, not a statutory requirement. Readings are modelled, not a municipality's data.
